Create Item with associate size chart

Associate size chart to an item

To associate a size chart to listings within the required domains, you will have to execute a POST on the items, sending the new attributes of type SIZE_GRID_ID, the size chart which we want to associate the item or variation and SIZE_GRID_ROW_ID with reference to the row in the size chart. The size_grid_id and size_grid_row_id fields are new attributes in the payload at item creation.

• size_grid_id: is the ID of the size chart that was created.
• size_grid_row_id: is the ID of the grid row.
• The user that creates the item must be the same one that created the chart.
• The chart gender must be corresponding to item gender.
• It is not possible to associate a chart without row_id associated.

Required fields

The following fields are required when creating an item with size chart:

• sites_to_sell: Array with site_id and logistic_type
• title: Item title (maximum 60 characters)
• category_id: Category identifier
• price: Item price
• currency_id: Currency code (e.g., USD)
• condition: Item condition (new, used)
• pictures: Array of picture URLs
• sale_terms: Warranty and sale terms
• attributes: Including SIZE_GRID_ID, BRAND, GENDER, MODEL
• PACKAGE_WEIGHT, PACKAGE_LENGTH, PACKAGE_WIDTH, PACKAGE_HEIGHT: Package dimensions

In the creation of the footwear article, the attributes of the size guide number created in the previous steps must be included. It should be inserted in the attribute block, following the example below:

• SIZE_GRID_ID:
• id: the new field "SIZE_GRID_ID".
• value_name: the ID (number) of the guide.

"attributes": [
   {
       "id": "SIZE_GRID_ID",
       "value_name": "664737"
   },

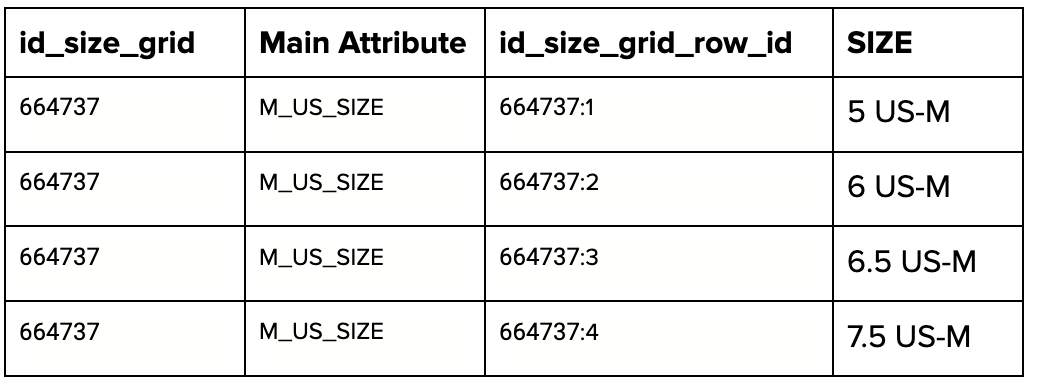

We also need to associate the size guide rows with the variations of the article being created. In other words, each variation must be associated with a row from the size table. Therefore, the "SIZE_GRID_ROW_ID" field should be included in the variation attributes:

• SIZE_GRID_ROW_ID:
• id: the new field "SIZE_GRID_ROW_ID".
• value_name: the ID (number) of the guide + ":" + the corresponding row number in the size table. For example apply to footwear:

"attributes": [
   {
       "id": "SIZE_GRID_ROW_ID",
       "value_name": "664737:1"
   },

Create item with size chart

Request:

curl -X POST -H 'Authorization: Bearer $ACCESS_TOKEN' -H "Content-Type: application/json" https://api.mercadolibre.com/global/items -d '{
   "sites_to_sell": [
       {
           "site_id": "MLM",
           "logistic_type": "remote"
       }
   ],
   "title": "Test Sneaker with Size Chart",
   "category_id": "CBT3724",
   "price": 25,
   "currency_id": "USD",
   "condition": "new",
   "listing_type_id": "gold_pro",
   "pictures": [
       {"source": "https://http2.mlstatic.com/D_644516-CBT51699767208_092022-O.jpg"}
   ],
   "sale_terms": [
       {
           "id": "WARRANTY_TYPE",
           "value_id": "6150835",
           "value_name": "No warranty"
       }
   ],
   "attributes": [
       {"id": "SIZE_GRID_ID", "value_name": "4339173"},
       {"id": "BRAND", "value_name": "Generic"},
       {"id": "GENDER", "value_id": "339666"},
       {"id": "MODEL", "value_name": "Generic Model"},
       {"id": "PACKAGE_WEIGHT", "value_name": "1 kg"},
       {"id": "PACKAGE_LENGTH", "value_name": "30 cm"},
       {"id": "PACKAGE_WIDTH", "value_name": "20 cm"},
       {"id": "PACKAGE_HEIGHT", "value_name": "15 cm"},
       {"id": "ITEM_CONDITION", "value_id": "2230284", "value_name": "New"}
   ],
   "variations": [
       {
           "attribute_combinations": [
               {"id": "COLOR", "value_name": "Black"},
               {"id": "SIZE", "value_name": "5 US-M"}
           ],
           "price": 25,
           "available_quantity": 10,
           "picture_ids": ["https://http2.mlstatic.com/D_644516-CBT51699767208_092022-O.jpg"],
           "attributes": [
               {"id": "SIZE_GRID_ROW_ID", "value_name": "4339173:1"}
           ]
       }
   ]
}'

Response: 200 OK

{
   "item_id": "CBT3169302956",
   "seller_id": 2487485082,
   "site_id": "CBT",
   "site_items": [
       {
           "item_id": "MLM2615766915",
           "seller_id": 2488208976,
           "site_id": "MLM",
           "logistic_type": "remote"
       }
   ]
}

Response fields

• item_id: The created CBT item ID.
• seller_id: The seller's ID.
• site_id: The origin site (CBT).
• site_items: Array of items created in destination sites.
• site_items[].item_id: The item ID in the destination site.
• site_items[].seller_id: The seller ID in the destination site.
• site_items[].site_id: The destination site ID (MLM, MLB, MLC, MCO).
• site_items[].logistic_type: The logistic type configured.

Create item with multiple variations

You can create an item with multiple size variations, each associated with a different row in the size chart:

Request:

curl -X POST -H 'Authorization: Bearer $ACCESS_TOKEN' -H "Content-Type: application/json" https://api.mercadolibre.com/global/items -d '{
   "sites_to_sell": [
       {
           "site_id": "MLM",
           "logistic_type": "remote"
       }
   ],
   "title": "Test Sneaker Multiple Variations",
   "category_id": "CBT3724",
   "price": 30,
   "currency_id": "USD",
   "condition": "new",
   "listing_type_id": "gold_pro",
   "pictures": [
       {"source": "https://http2.mlstatic.com/D_644516-CBT51699767208_092022-O.jpg"},
       {"source": "https://http2.mlstatic.com/D_862503-CBT51700450573_092022-O.jpg"}
   ],
   "sale_terms": [
       {
           "id": "WARRANTY_TYPE",
           "value_id": "6150835",
           "value_name": "No warranty"
       }
   ],
   "attributes": [
       {"id": "SIZE_GRID_ID", "value_name": "4326431"},
       {"id": "BRAND", "value_name": "Generic"},
       {"id": "GENDER", "value_id": "339665"},
       {"id": "MODEL", "value_name": "Generic Model"},
       {"id": "PACKAGE_WEIGHT", "value_name": "1 kg"},
       {"id": "PACKAGE_LENGTH", "value_name": "30 cm"},
       {"id": "PACKAGE_WIDTH", "value_name": "20 cm"},
       {"id": "PACKAGE_HEIGHT", "value_name": "15 cm"},
       {"id": "ITEM_CONDITION", "value_id": "2230284", "value_name": "New"}
   ],
   "variations": [
       {
           "attribute_combinations": [
               {"id": "COLOR", "value_name": "Black"},
               {"id": "SIZE", "value_name": "7 US-W"}
           ],
           "price": 30,
           "available_quantity": 5,
           "picture_ids": ["https://http2.mlstatic.com/D_644516-CBT51699767208_092022-O.jpg"],
           "attributes": [
               {"id": "SIZE_GRID_ROW_ID", "value_name": "4326431:1"}
           ]
       },
       {
           "attribute_combinations": [
               {"id": "COLOR", "value_name": "Black"},
               {"id": "SIZE", "value_name": "8 US-W"}
           ],
           "price": 30,
           "available_quantity": 5,
           "picture_ids": ["https://http2.mlstatic.com/D_644516-CBT51699767208_092022-O.jpg"],
           "attributes": [
               {"id": "SIZE_GRID_ROW_ID", "value_name": "4326431:2"}
           ]
       },
       {
           "attribute_combinations": [
               {"id": "COLOR", "value_name": "Blue"},
               {"id": "SIZE", "value_name": "9 US-W"}
           ],
           "price": 30,
           "available_quantity": 5,
           "picture_ids": ["https://http2.mlstatic.com/D_862503-CBT51700450573_092022-O.jpg"],
           "attributes": [
               {"id": "SIZE_GRID_ROW_ID", "value_name": "4326431:3"}
           ]
       }
   ]
}'

Verify created item

After creating an item, you can verify it was created correctly with the size chart associated:

Request:

curl -X GET -H 'Authorization: Bearer $ACCESS_TOKEN' https://api.mercadolibre.com/marketplace/items/$ITEM_ID

Response: 200 OK or 206 Partial Content

The response will include the SIZE_GRID_ID in the attributes and SIZE_GRID_ROW_ID in each variation's attributes.

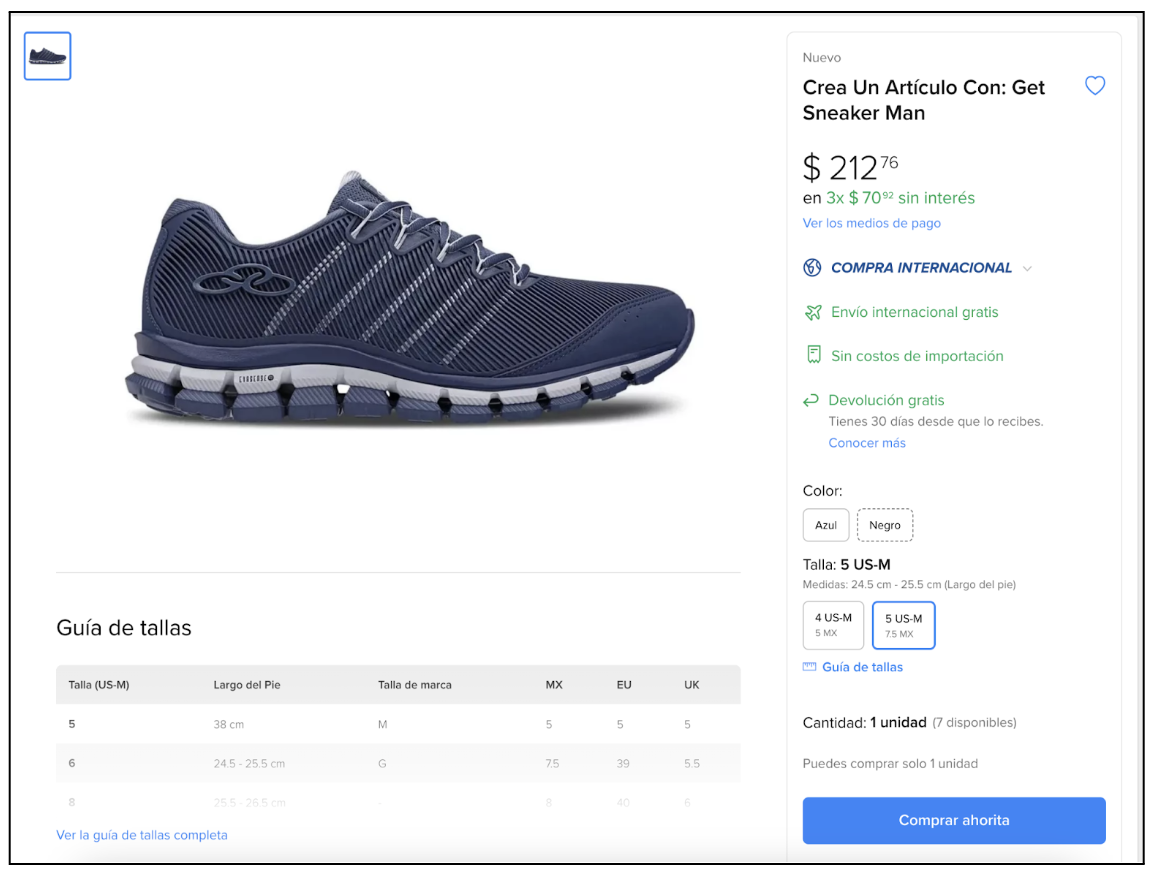

Result items with size chart

The publication result in Mercado Libre is that:

Validations

• Title length: The item title must not exceed 60 characters for certain categories.
• Unique variations: Each variation must have a unique combination of attributes. Duplicate variations (same COLOR and SIZE) are not allowed.

Errors

Size Chart Errors

Item Validation Errors
